secondhand Philips P80C592FFA 8-bit Microcontroller Socket PLCC68

Used

#philips • #microcontrollers • #canbus • #industrialautomation • #embeddedtech

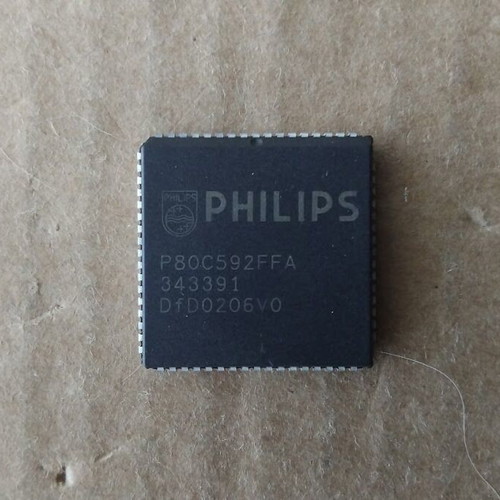

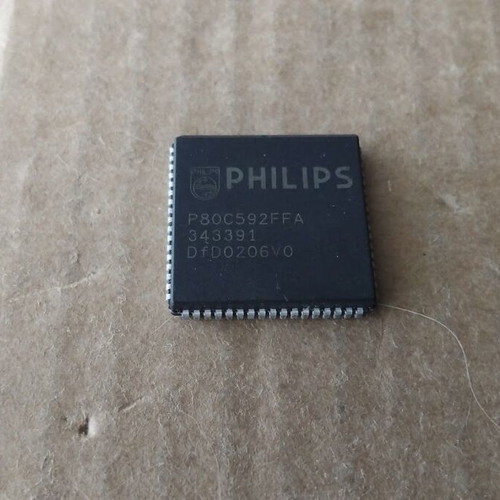

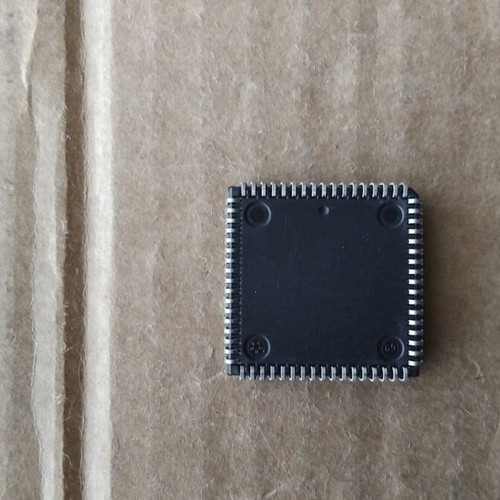

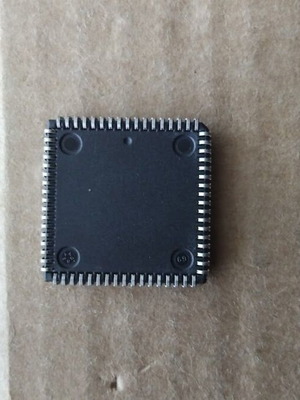

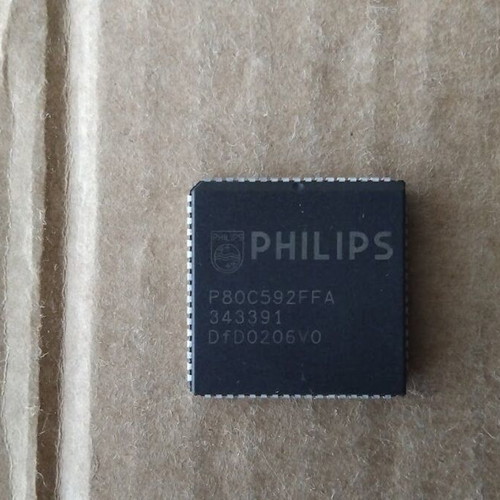

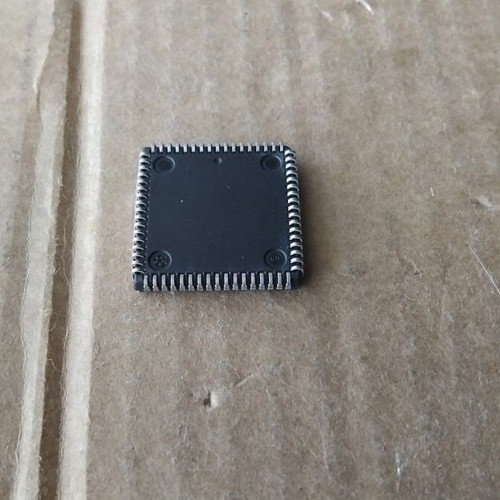

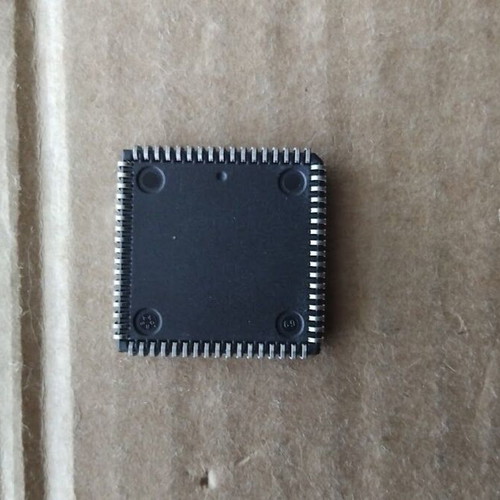

Philips P80C592FFA 8-bit Microcontroller Socket PLCC68

Selling Philips P80C592FFA 8-bit Microcontroller Socket PLCC68

P80C592FFA Overview

The P80C592FFA is a high-performance 8-bit microcontroller from Philips (now NXP), fabricated using advanced CMOS technology. It is a ROM-less variant of the P8XC592, integrating a CAN controller and enhanced peripheral features while maintaining full compatibility with the standard 80C51 instruction set. This makes it ideal for industrial control, automotive systems, and communication applications requiring robust real-time processing and CAN bus support.

Specification
CPU Core: 80C51-compatible 8-bit MCU
Memory: 2 × 256 B On-chip RAM; External RAM up to 64 KB
ADC: 10-bit, 8-channel analog input
DAC: Two 8-bit PWM outputs
Timers/Counters: Two 16-bit standard timers + one enhanced 16-bit timer (4 capture, 3 compare)
Interrupts: 15 sources with two-level priority; 2–6 external interrupt inputs
I/O Ports: Five 8-bit I/O ports + one shared ADC port
CAN Controller: 1 Mbps, with bus fault management, integrated DMA
UART: Full-duplex, standard 80C51 UART
Watchdog Timer: On-chip WDT
Operating Frequency: 1.2 MHz – 16 MHz
Supply Voltage: 5 V (VDD/2 reference available)

The microcontroller is in excellent condition.
It has been tested and works without issues.
