secondhand Samson Stage XPD2 USB Digital Wireless Presentation System new

New

#samson • #liveaudio • #streaminggear • #audiorecording • #wirelessmic

Samson USB digital wireless presentation system Stage XPD2

High-quality digital sound
XPD2 Wireless delivers its high-quality sound through digital transmission. This type of wireless technology allows the handheld transmitter PXD1 to send an uncompressed signal to the receiver. The result is a higher signal-to-noise ratio compared to traditional wireless systems and performance that sounds as good as a wired microphone.

The USB receiver RXD2 connects directly to Mac or PC computers, or to any portable PA system from the Samson Expedition Series that has a USB wireless port. An additional feature from the previous generation system, the 1/8" (3.5 mm) output, allows monitoring with headphones, and the XPD2 Lavalier can be used with any device with an analog line input, including smartphones and other mobile devices.

More ways to connect
A simplified setup is essential for any active performer or presenter. The USB receiver RXD2 easily connects to any portable PA system from the Samson Expedition series or a Samson mixer with a wireless USB port. The RXD2 has a 1/8" (3.5 mm) analog output that can be used with headphones or to connect to other devices with analog input. A USB-A to USB-C adapter is also included for use with other compatible devices.

2.4GHz USB digital wireless system
Ideal for broadcasting, live streaming, presentations, and more
Plug-and-play operation with Mac and Windows
Works with iPad via Apple Lightning to USB Camera Adapter
Works with Android devices via OTG adapter

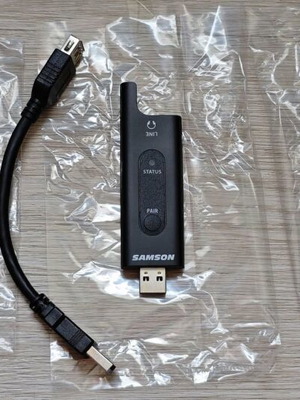

RXD2 USB receiver
The receiver features a 1/8" (3.5 mm) headphone/monitor output
PXD1 belt pack transmitter with Samson LM8 Lavalier microphone
The transmitter offers 20 hours of battery life with two AA batteries (not included)
Operating range of 100 feet (line of sight, depending on the environment)
One-touch pairing, adjustable transmitter volume controls
Compatible with portable PA systems from the Samson Expedition Series that have USB wireless ports
Includes a clip for clothing and a USB extension cable

Specifications:

System
Simultaneous systems 2
Operating range 100 feet visibility
Operating frequency 2.404~2.476 GHz
Modulation type GFSK
Audio frequency response 20 Hz – 17 kHz (-1 dB)
THD <0.1% (at 1 kHz, -10 dBu)
Signal to noise >85 dB

PXD1 Transmitter:

Microphone Lavalier microphone Samson LM8
Input connector Mini-XLR (P3)
RF power <10 mW EIRP
Power requirements Two AA alkaline batteries (LR6)
Battery life 20 hours
Audio sampling frequency 32 kHz
Dimensions 0.75” x 2.44” x 0.75” / 96 mm x 62 mm x 18.5 mm
Weight 0.2 lbs / 93 g

RXD2 Receiver:

Maximum analog audio output level 9 dBu
Headphone output 22 mW at 16 Ω or 32 Ω
Operating voltage 5V DC
Dimensions 3.5” x 0.9” x 0.31” / 89 mm x 23 mm x 8 mm
Weight 0.35 oz / 10 g
