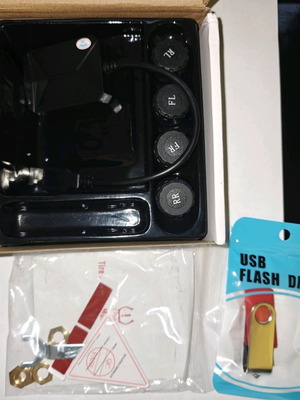

TPMS Tire Pressure Monitoring System USB

Not used

Description:
TPMS for Android Car Player / Android GPS Navigation.
The TPMS receiver can connect to an Android car DVD via USB port.
Tire pressure and temperature data displayed on the Android car DVD screen.
Audible alarm through car speakers and screen alarm when an anomaly occurs.
Prevent tire blowouts, extend tire life, and save fuel.
The sensor automatically wakes up when the tire starts operating.
Quickly update tire pressure and temperature data in the Android TPMS app.
Automatic sleep for energy saving after parking.

Features:
• Wireless transmission: No complicated wiring needed, the TPMS sends data wirelessly to your Android device.
• 4 Sensors: With 4 sensors, this TPMS provides accurate tire pressure monitoring for all your vehicles.
• Alarm system: The TPMS comes with an alarm system that alerts you when tire pressure is low, ensuring safe driving.
• CE Certification: The TPMS is CE certified, ensuring it meets high safety and quality standards.

6 Protections for safe driving:
High pressure alarm
Low pressure alarm
Air leak alarm
High temperature alarm
Low battery power alarm
Sensor disconnection alarm The factory default values for this product are:
The factory default values for this product are:
1. High pressure alarm value: >3.1 Bar
2. Low pressure alarm value: <1.8 Bar
3. High temperature alarm value: 75C
4. Default air pressure unit: Bar

Technical parameters of the sensor:
1. Operating voltage 1: 2.1V~3.6V
2. Air pressure measurement range: 0-8 Bar
3. Temperature measurement range: -40℃-125℃
4. Sensor weight: external ≤10 grams, built-in <34 grams
5. Waterproof standard: IPX67
6. RF operating frequency: 433.92 MHz

Technical parameters of the receiver:
1. Operating voltage: DC12V
2. Maximum operating current: less than 15mA
3. High frequency operating frequency: 433.92 MHz
4. Operating temperature: -40℃-85℃
5. Communication line length: 20CM
6. Mounting method: 3M adhesive
