MSI Z370-A PRO Motherboard with BOX

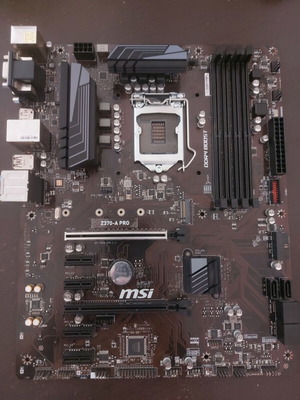

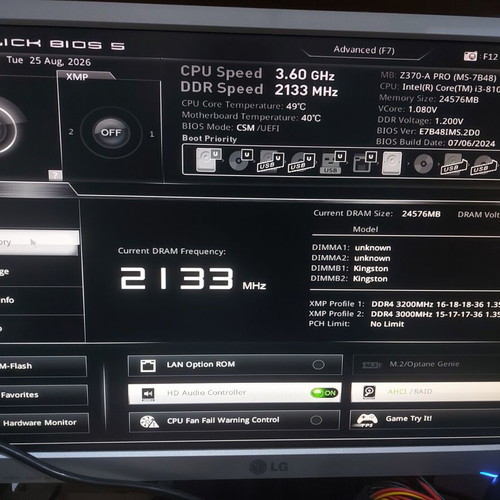

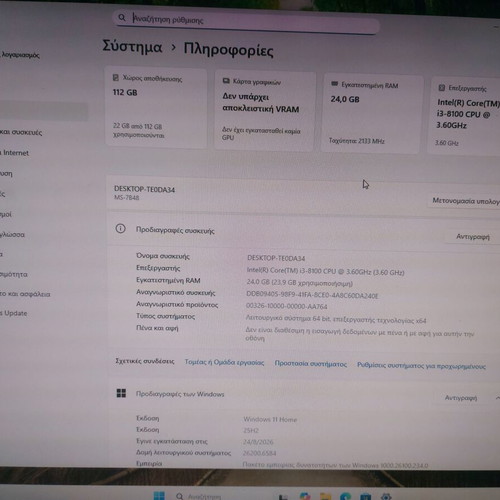

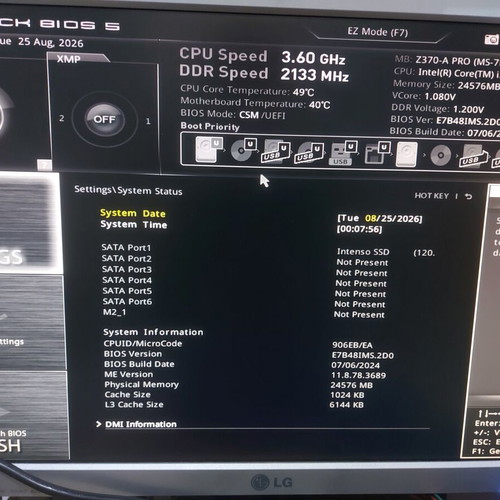

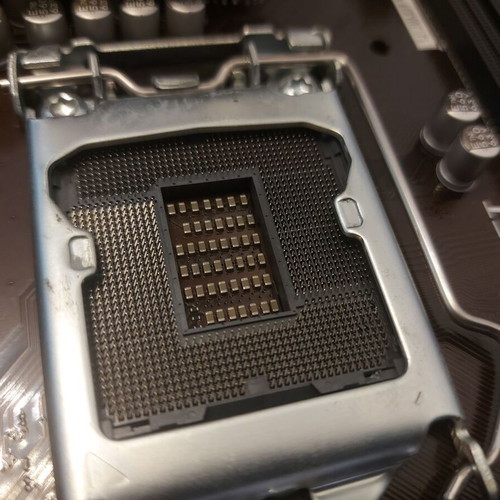

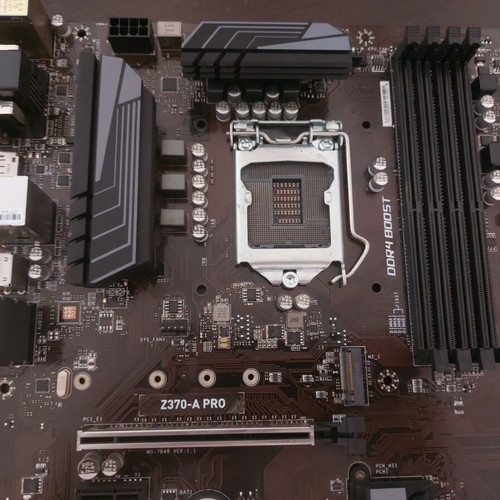

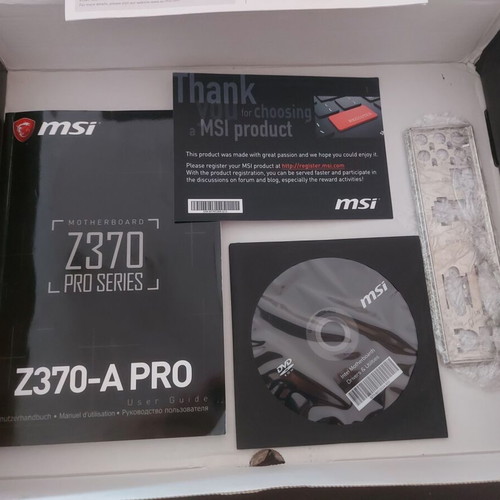

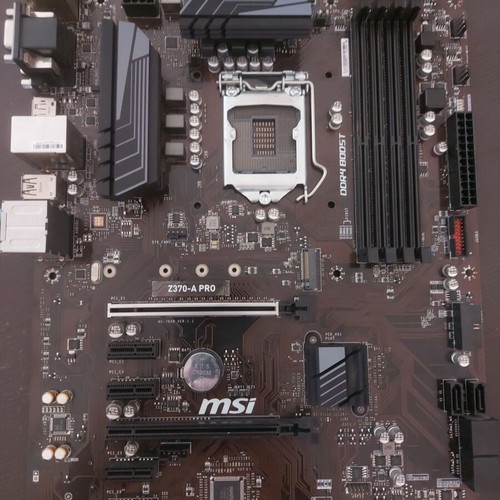

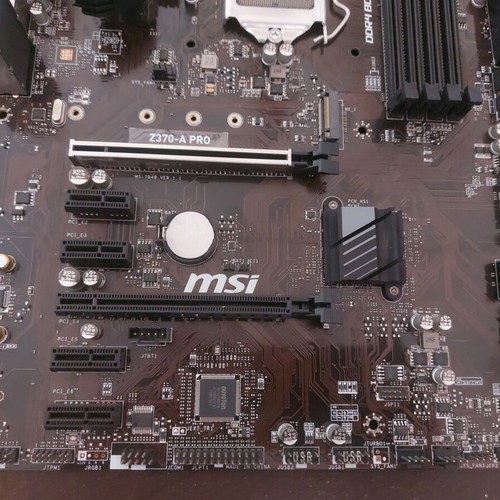

Πωλείται μητρική MSI Z370-A PRO Socket 1151 (παίρνει CPU Intel 8ης & 9ης γενιάς) σε καλή κατάσταση. Η μητρική δίνεται μαζί με το κουτί της, το I/O shield, τους drivers και το Manual της. Στην μητρική λείπουν 3 pins στο Socket του CPU με αποτέλεσμα να λειτουργούν MONO τα RAM slots B1 & B2. Η μητρική λειτουργούσε (όπως φαίνεται και στις φωτό με 24GB μνήμης στα slot αυτά) σε Windows 11 χωρίς κάποιο πρόβλημα.

Motherboard SPECS:

Processor

Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket

See supported processors
Chipset

Intel® Z370 Chipset
Memory

4 x DDR4 memory slots, support up to 64GB
Supports 4000+(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2667/ 2400/ 2133 MHz
Dual channel memory architecture
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

See supported memory
Slots

1 x PCIe 3.0 x16 slot (PCI_E1, supports x16 mode)
1 x PCIe 3.0 x16 slot (PCI_E4, supports x4 mode)
4 x PCIe 3.0 x1 slots

Onboard Graphics

1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
1x DisplayPort port 1.2, supports a maximum resolution of 4096X2304@60Hz

*No Display support when using the Processor model with suffix “F”
Multi-GPU

Supports 2-Way AMD® CrossFire™ Technology

Storage
Intel® Z370 Chipset

6 x SATA 6Gb/s ports1
1 x M.2 slot (Key M)
Support up to PCIe 3.0 x4 and SATA 6Gb/s
Supports 2242/ 2260 /2280/ 22110 storage devices
M2_1 slot supports 2242/ 2260 /2280/ 22110 storage devices
Intel® Optane™ Memory Ready2
Supports Intel® Smart Response Technology for Intel Core™ processors

The SATA1 port will become unavailable when M.2 SATA SSD has been installed in M.2 slot.
Please refer to page 87 for Intel® Optane™ Memory Configuration.

RAID
Intel® Z370 Chipset

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB
Intel® Z370 Chipset

8 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

Audio
Realtek® ALC892 Codec

7.1-Channel High Definition Audio

LAN

1 x RTL8111H Gigabit LAN controller

Internal connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x 4-pin CPU fan connector
1 x 4-pin water pump fan connector
4 x 4-pin system fan connectors
1 x Front panel audio connector
2 x Front panel connectors
1 x TPM module connector
1 x Chassis Intrusion connector
1 x Serial port connector
1 x Parallel port connector
1 x Thunderbolt Add-on Card Connector
1 x Clear CMOS jumper

Dimensions

12.0 in. x 9.6 in. (30.5 cm x 24.4 cm)
ATX Form Factor
