secondhand Vintage Bigloop Stereo Equalizer Mixer with Echorder

View gallery

Used

#vintageaudio • #audiomixer • #djgear • #proaudio • #mixingconsole

VINTAGE MIXER BIGLOOP

# Vintage Bigloop Stereo Equalizer Mixer w/ Echorder

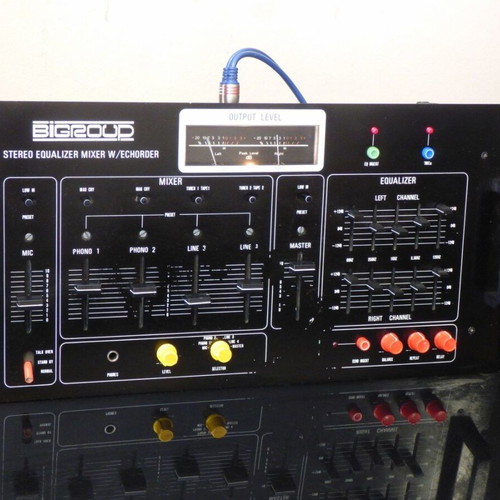

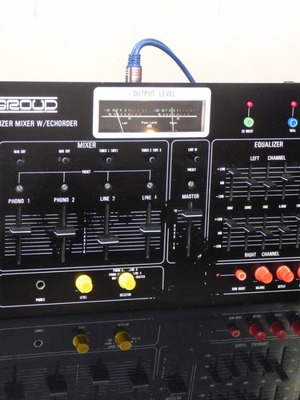

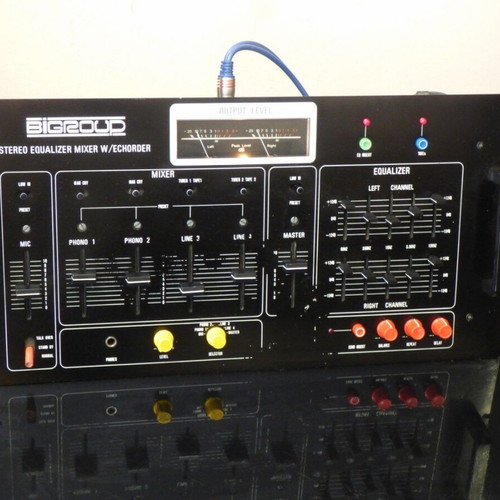

The **Vintage Bigloop Stereo Equalizer Mixer w/ Echorder** is a distinctive **vintage analog stereo mixer**, designed for use in DJ, Hi-Fi, and home audio systems. It combines a multi-input mixer, independent graphic equalizer, and built-in echo/delay effect in one device.
### Channels and Inputs
The mixer features a total of **5 inputs**:
* **MIC** — microphone input, with independent volume fader.
* **PHONO 1** — input for turntable.
* **PHONO 2** — second input for turntable.
* **LINE 3** — line input for devices such as cassette players, CD players, or other audio sources.
* **LINE 4** — second line input for a corresponding audio source.
Each channel has a separate fader, allowing for independent volume adjustment and mixing of different sources.
### Master and Monitoring
The overall mix volume is controlled by the **MASTER**, while the built-in **stereo VU meter** shows the level of the left and right channels.
There is also a **PHONES** output with separate volume control for listening through headphones.
### Vintage Graphic Equalizer
On the right side is the equalizer**, with separate settings for **Left** and **Right** channels.
The five frequency ranges are:
* **60 Hz** — deep bass
* **250 Hz** — low mids
* **1 kHz** — mid frequencies
* **3.5 kHz** — presence and clarity
* **12 kHz** — highs and detail
The settings allow for boosting or cutting the corresponding frequencies, providing control over the final character of the sound.
### Vintage Echo / Echorder
The lower right section features a built-in **vintage echo/delay**, with potentiometers for **Balance, Repeat, and Delay**. The effect adds repeats and a characteristic analog/vintage character to the mix.
### Overall
With its large faders, analog VU meter, separate stereo equalizer, and built-in echo, it is a characteristic example of its time and an interesting choice for use in analog systems as well as for collectors of **vintage audio equipment**.
Offered at 100 euros.
