secondhand IFM SM8100 Magnetic Inductive Flow Sensor new

View gallery

New

#electricalsupplies • #industrialautomation • #processcontrol • #ifm • #flowsensor

Magnetic-inductive flow sensor IFM SM8100

Magnetic-inductive flow sensor
SM8100

Number of inputs and outputs
Number of digital outputs: 2; Number of analog outputs: 1
Measurement range
0.2...100 l/min
0.01...6 m³/h
Process connection
Screw connection G 1 external thread DN25 Flat gasket
Number of inputs and outputs
Number of digital outputs: 2; Number of analog outputs: 1
Measurement range
0.2...100 l/min
0.01...6 m³/h
Process connection
Screw connection G 1 external thread DN25 Flat gasket

Conductivity: ≥ 20 µS/cm
Viscosity: < 70 mm²/s (40 °C)
Medium temperature [°C]
-10...70
Pressure resistance
16 bar

MAWP for applications according to CRN
10.4 bar

Operating voltage [V]
18...30 DC; (SELV/PELV compliant)
Current consumption [mA]
95; (24 V)
Protection class
III
Reverse polarity protection
Yes
Activation delay [s]
5
Operating principle
magnetic-inductive

Mechanical data

Weight [g] 640
Enclosure Cylindrical
Inlet pipe length 3 x DN
Outlet pipe length 1 x DN
Dimensions [mm] Ø 54 / L = 110
Material
stainless steel (1.4404 / 316L); PBT-GF20; PC; FKM; TPE
Materials in contact with the medium
stainless steel (1.4404 / 316L); PEEK; EPDM
Process connection Screw connection G 1 external thread DN25 Flat gasket

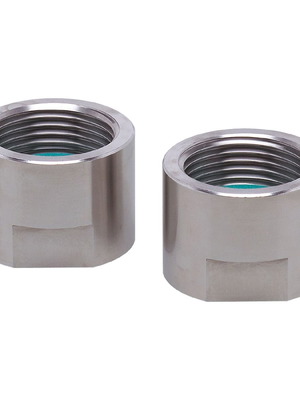

Flow sensor installation adapter
E40217
SREW-IN ADAPTER 1" SM
For installation of flow sensors in pipelines
Easy, quick, and secure installation
Suitable for ultrasonic sensors and magnetic-inductive sensors
The required sealing materials are supplied with the unit
Robust stainless steel design for use in demanding industrial environments
