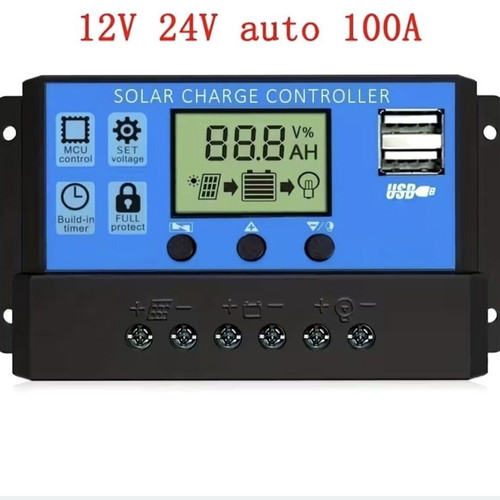

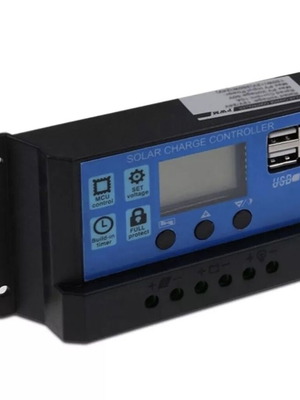

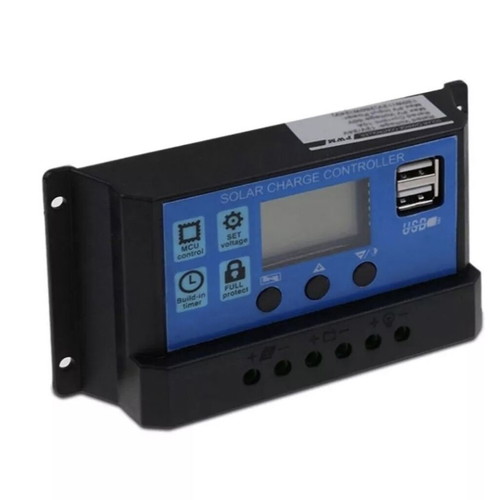

Solar controller 100 a.

Specifications
Battery voltage: 12V/24V automatic
Charging current: 100A
Discharging current: 10A
Self-consumption: 10MA
Operating temperature: -35~+60
USB output: 2-way USB output, 5V/2.5A(MAX)
Size: (L)X(W)X(H) 13.3x7x3.2cm
Features:
• Built-in industrial microcontroller
• Fully 3-stage PWM charge control
• Large LCD display, all adjustable parameters
• Dual MOSFET protection against reverse current, favorite production
• Dual USB output, maximum current of 2.5 A, for charging mobile phones
• Built-in short circuit protection, open circuit protection, reverse protection, overload protection
SYSTEM CONNECTION
1. Connect the battery to the charge controller - positive and negative
2. Connect the photovoltaic module to the controller - positive and negative
3. Connect the consumer to the controller - positive and negative
NOTE: When uninstalling, the reverse order applies, incorrect sequence may damage the controller
SAFETY INSTRUCTIONS
1. Ensure that your battery has sufficient voltage for the controller to recognize the battery type before the first installation
2. The battery cable should be as short as possible to minimize losses
3. The controller is suitable only for lead-acid batteries OPEN, AGM, GEL, not suitable for nickel-metal-hydride, lithium-ion, or other batteries
4. The charge controller is suitable only for regulating solar modules. Never connect another charging source to the charge controller
