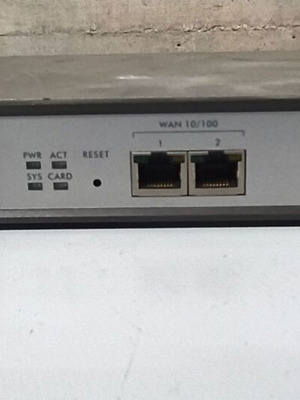

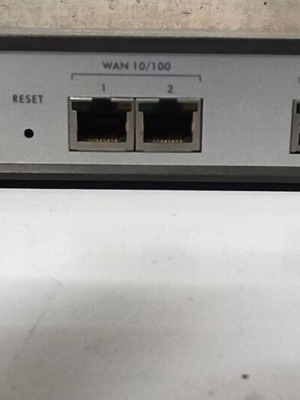

ZyWALL 35 Internet Security Appliance

Recommended for
Specifications
Application Diagram
Virtual Private Network
• 35 simultaneous IPSec VPN Connections
• Max. 40Mbps 3DES/AES VPN performance
• Manual Key, IKE and PKI (X.509)
• IPSec NAT Traversal
• Xauth User Authentication
Firewall Security
• Transparent Firewall (bridge mode)
• Stateful Packet Inspection
• DoS and DDoS Protection
• Real-time Attack Alert and Logs
Content Filtering
• Java/Active X/Cookie/Proxy Blocking
• URL and Keyword Blocking
• Web Content Filtering (Bluecoat)
Traffic Management
• Policy-based Traffic Shaping
• Priority-bandwidth Utilization
• Guaranteed Bandwidth Management
• Maximum Bandwidth Management
High Availability
• Dual WAN ports Auto fail-over and
fail-back
• Dual WAN ports for Load Balancing
• Dial Backup
Network
• DHCP client/relay/server
• PPPoE
• PPTP
System Management
• WebGUI (HTTP and HTTPS)
• Command Line Interface
(Console, Telnet, SSH)
• Firmware Upgrade
(WebGUI, TFTP/FTP/SFTP)
• Vantage Centralized Network Management
Wireless
• IEEE 802.11b/11g compliant
• 128-bits WEP Encryption
• IEEE 802.1x Port-Based Authentication
with RADIUS Client
• IPSec VPN over WLAN
• WPA
Hardware Specification
• Power: 12VDC
• 4-port LAN/DMZ switch:
10/100Mbps Ethernet
• WAN1 & WAN2: 10/100Mbps Ethernet
• Reset Button
• RS-232 DB9F: Console
• RS-232 DB9M: Dial Backup
• Extension Card Slot for Wireless &
Optional service*
Physical Specification
• Dimensions
242(L) x 175(D) x 35.5(H) mm
• Weight: 1,200g
Operating Environment
• Operating Temperature: 0 ~ 50ºC
• Operating Humidity: 20 ~ 95%
(non-condensing)
MTBF (Bellcore Model)
• 41.8 years
Internet Security Appliance
• Small and Medium Businesses looking for a cost-effective and easy-to-deploy security appliance and VPN connection
• Businesses requiring reduced operational costs through flexible traffic management
• Businesses needing a dynamically updated database for accurate and effective Web Content Filtering services
(powered by Bluecoat)
• Businesses that want to increase network efficiency, reliability and perform bandwidth load balancing
• Businesses looking for flexible port design with optional DMZ configuration
